ATE-light

Key Features

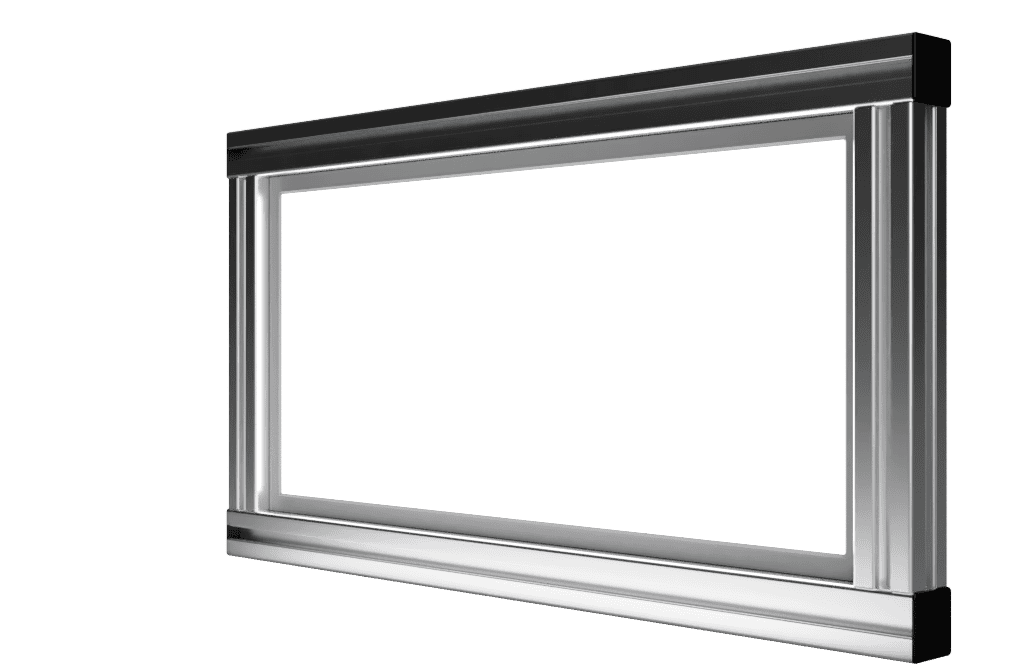

Flat light for direct or back illumination.
Robust aluminium frame made of 40 mm Allutec profiles for installation in industrial equipment, which also provides LED cooling.
Integrated current source.
Variants with integrated power supply are dimmable (PWM, analogue 0-10 V DC or trimmer on the device).
Variants without integrated power supply can be controlled by any waveform allowed by the external controller.

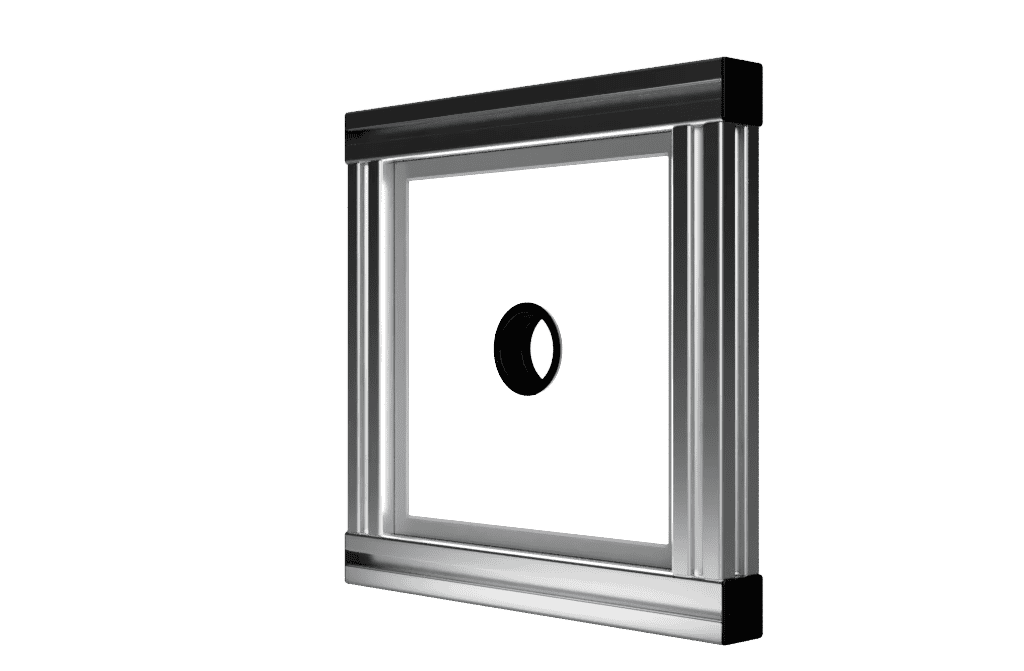

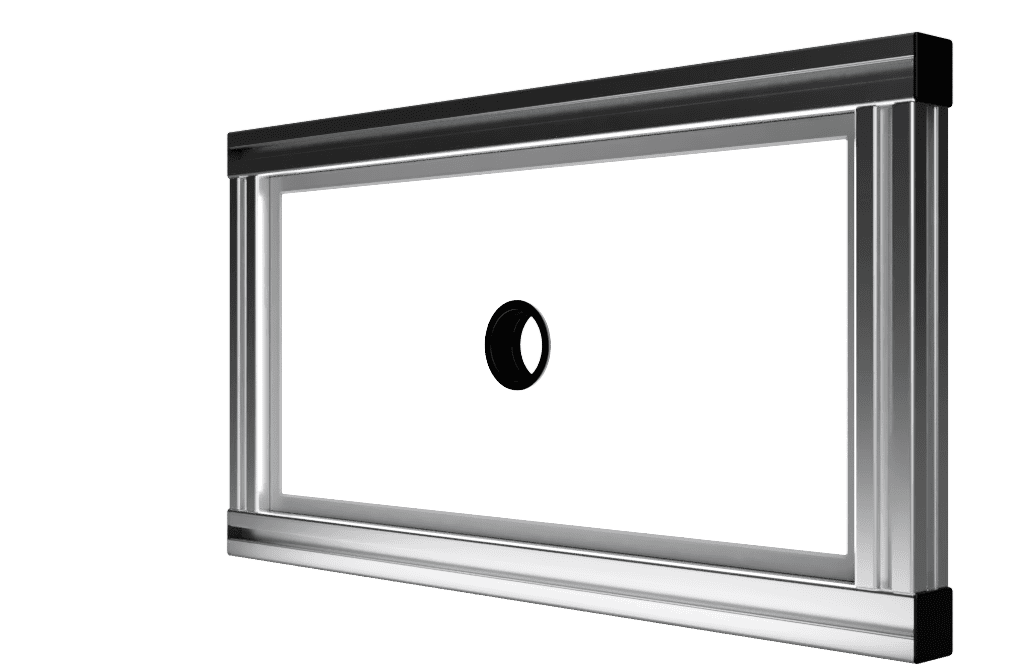

Optional 48 mm or 25 mm diameter hole for camera lens.
Optionally, the opening can be positioned outside the standard location and dimensions. Consultation with the manufacturer is always required.
White light with a chromaticity temperature of 4500 K.

Product description

A cost attractive portfolio of flat lights with a robust mechanical design suitable for industrial environments. Available in six sizes and with optional opening for camera/lens. The standard power supply of the illuminator is 24 V.

All our lights can be found in our e-shop.

Product identification

Light dimension (mm)	Illuminating area (mm)	Colour	Power type	Camera hole
256 x 356 x 40	145 x 245	W, R, B, G, IR	24 V or 1,2 A*	without hole/25 mm/48 mm
356 x 356 x 40	245 x 245	W, R, B, G, IR	24 V or 1,2 A*	without hole/25 mm/48 mm
356 x 656 x 40	245 x 545	W	24 V or 1,2 A*	without hole/25 mm/48 mm
656 x 1256 x 40	545 x 1145	W	24 V or 1,2 A*	without hole/25 mm/48 mm
656 x 656 x 40	545 x 545	W	24 V or 1,2 A*	without hole/25 mm/48 mm

*In the case of the variant without power supply, the light must be supplied with a current defined current (see table above) and the ability to supply the output voltage of 30V – 40V.

Parameters

Name	Value
Type of light	flat uniform or back light
Height	256/356/656 mm (depending on light size)
Width	356/656/1256 mm (depending on light size)
Depth	40 mm
Weight	2.2 - 12 kg (depending on the size of the light)

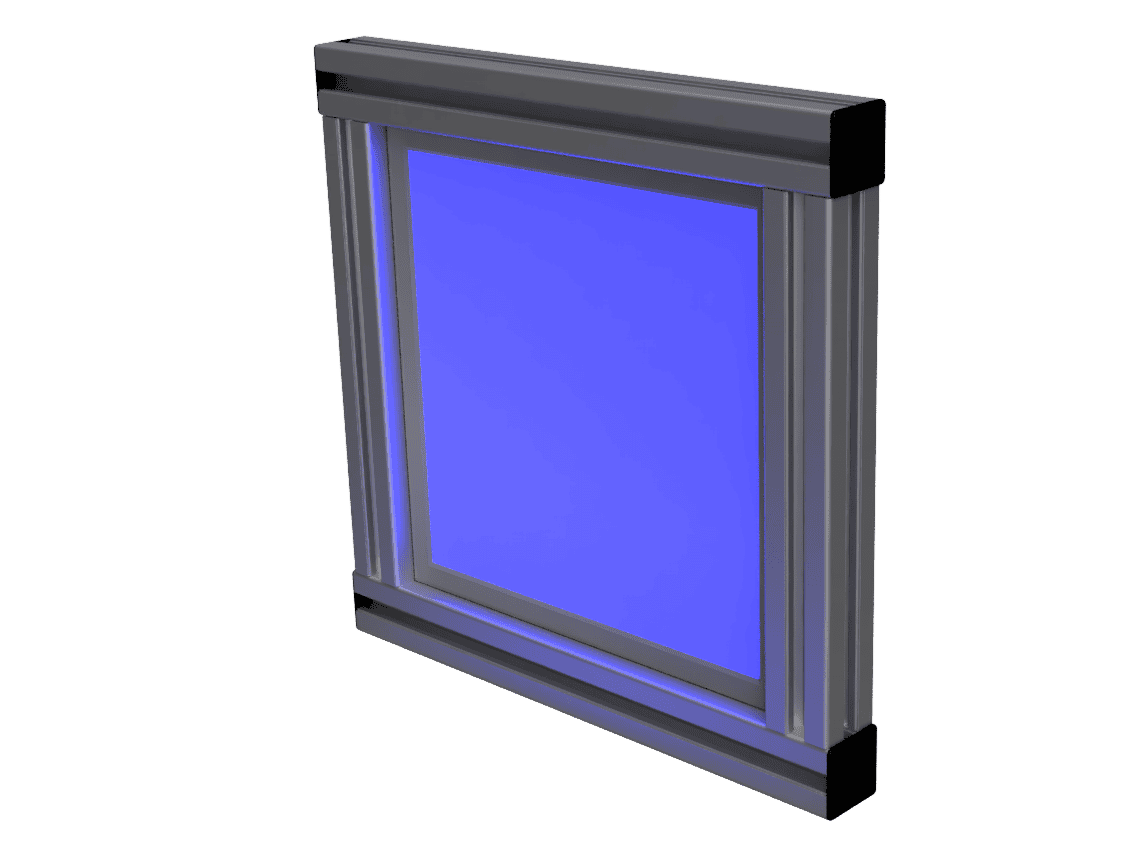

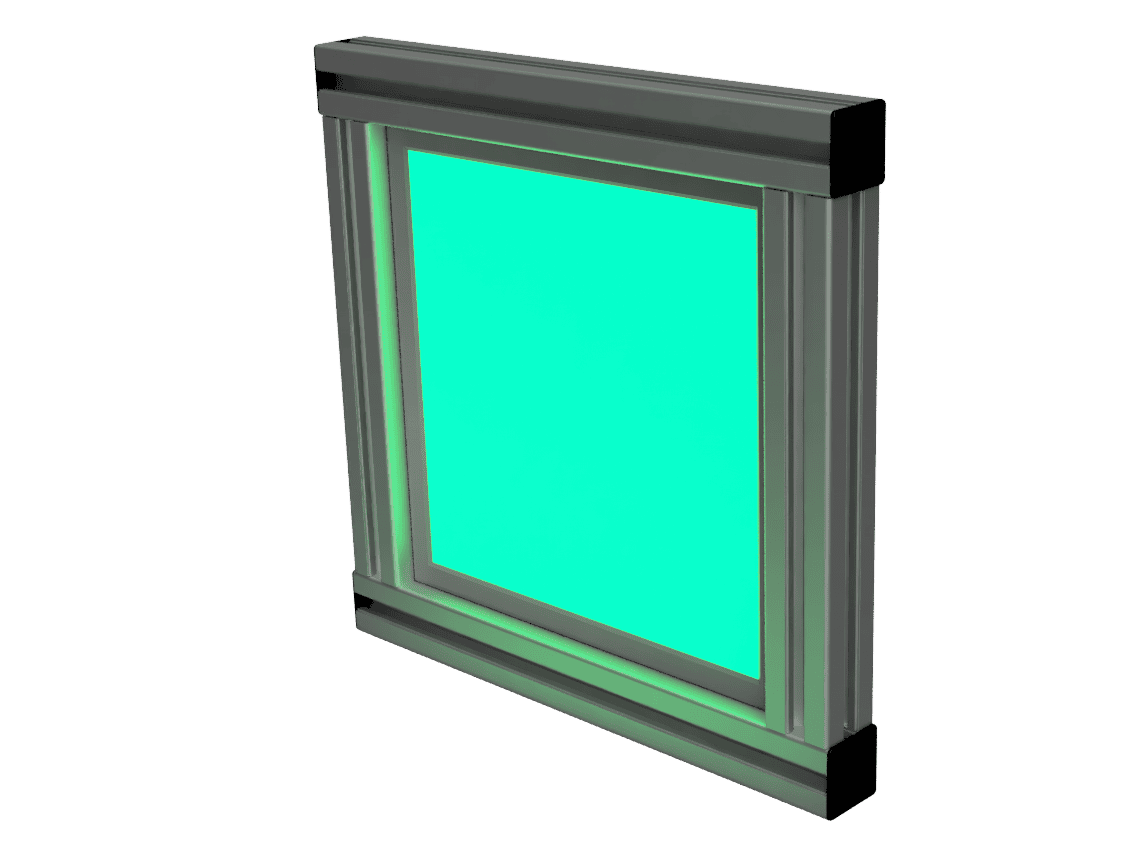

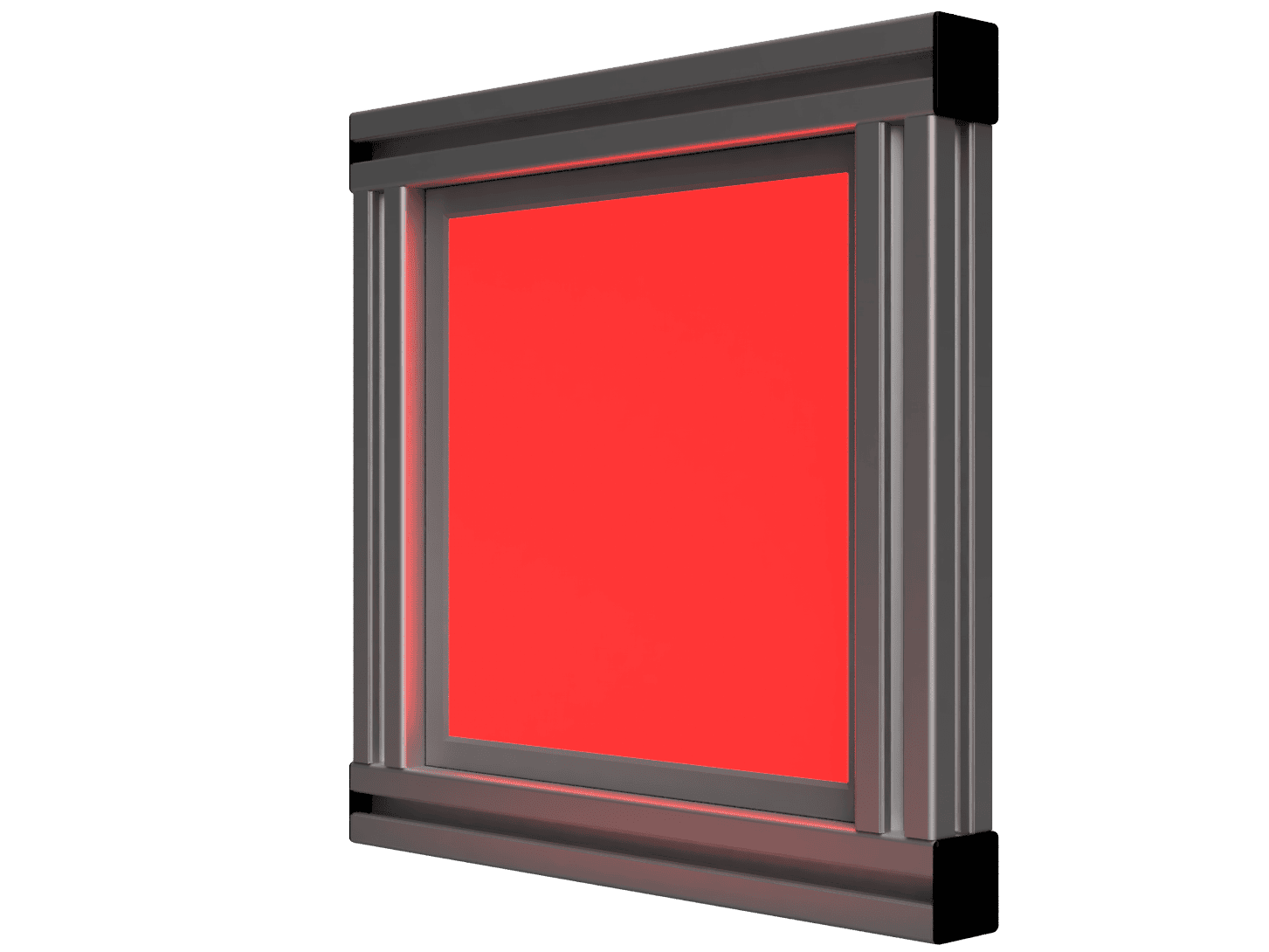

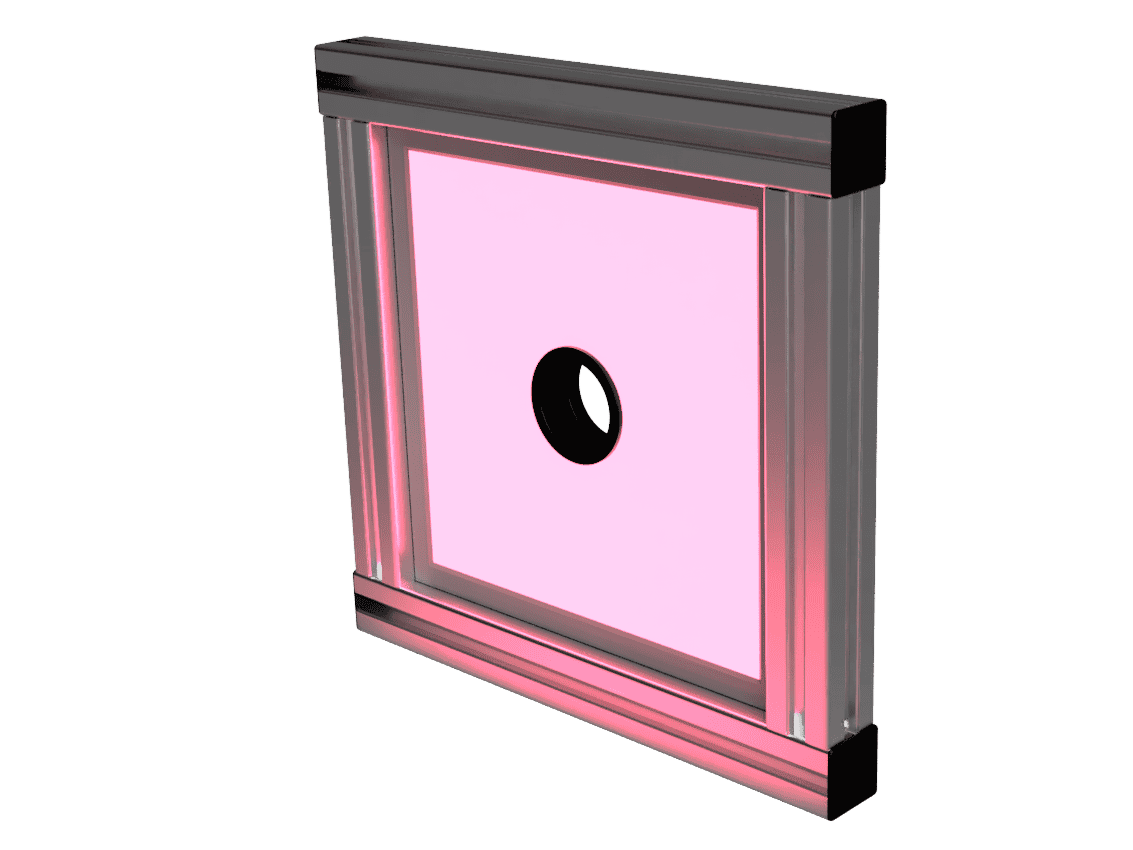

Colour of light	white, blue, green, red, infrared
Consumption	20 - 24 W (depending on the size of the light)
IP protection	IP20
Connector	M8 3 pin male, M8 3 pin female
