Ministat (software)

Key Features

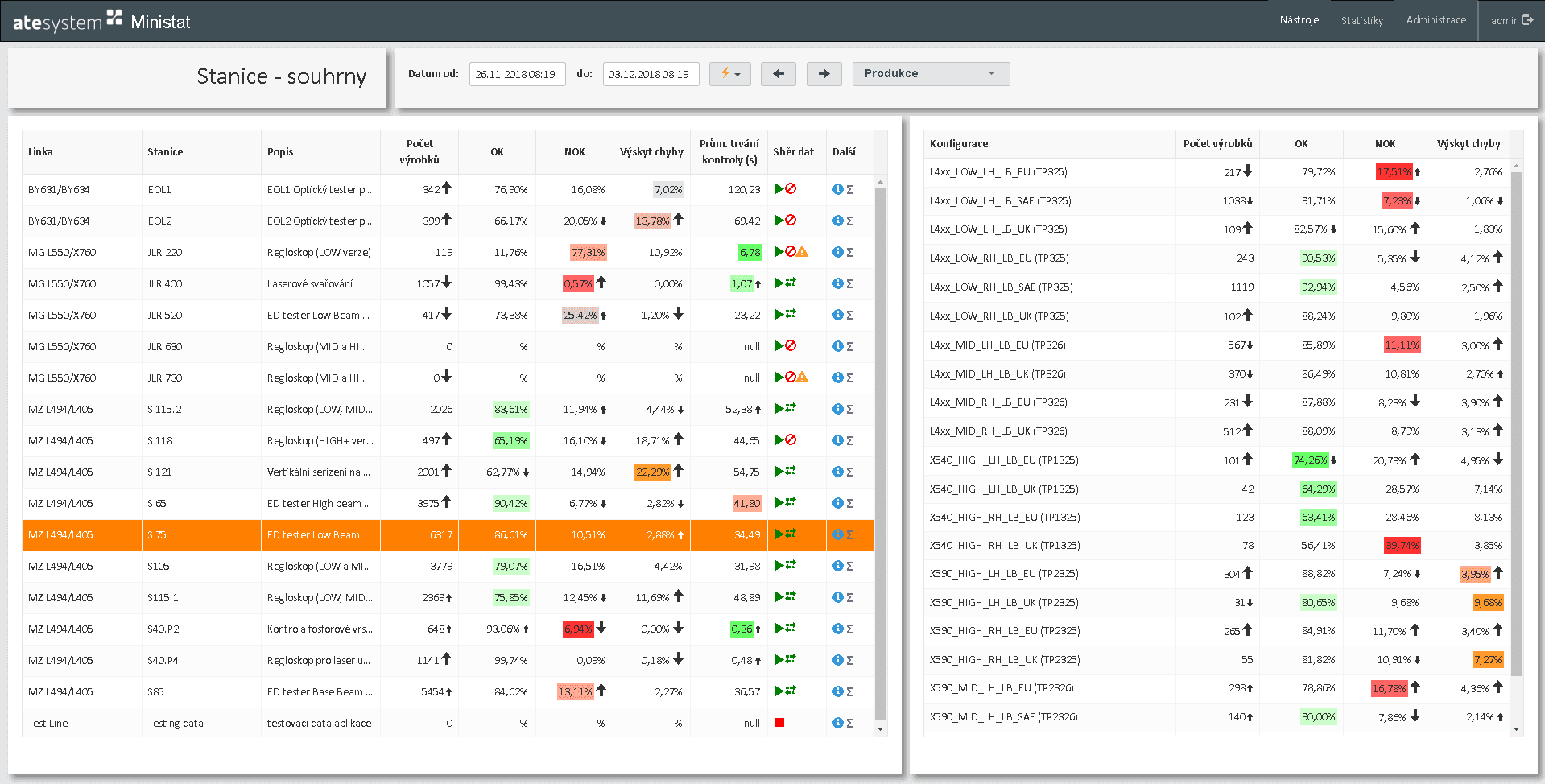

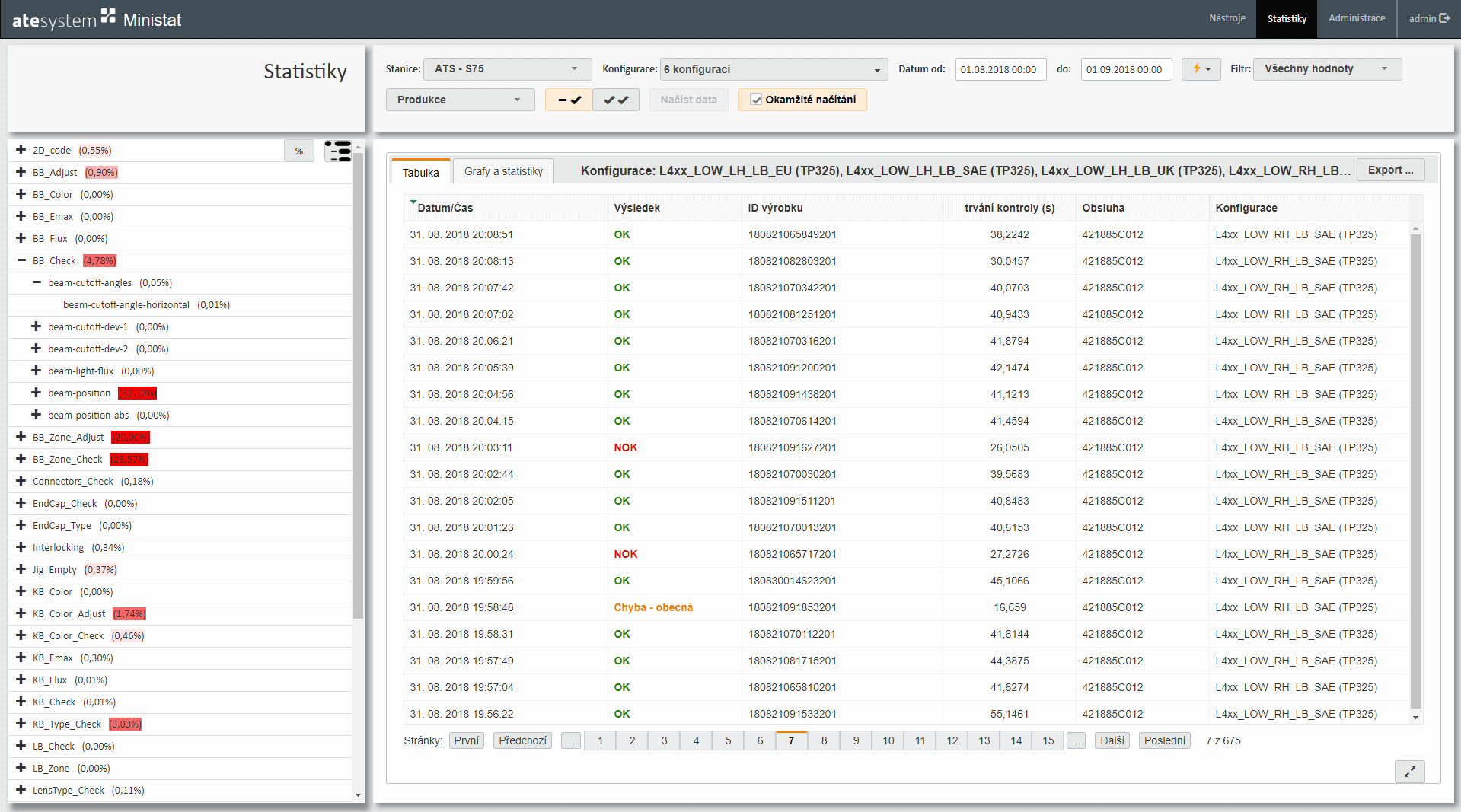

Clear display of collected data from the database.
Possibility to save reports in MS Word, MS Excel, PDF, CSV, PNG formats.
Configurable data views, summary statistics.

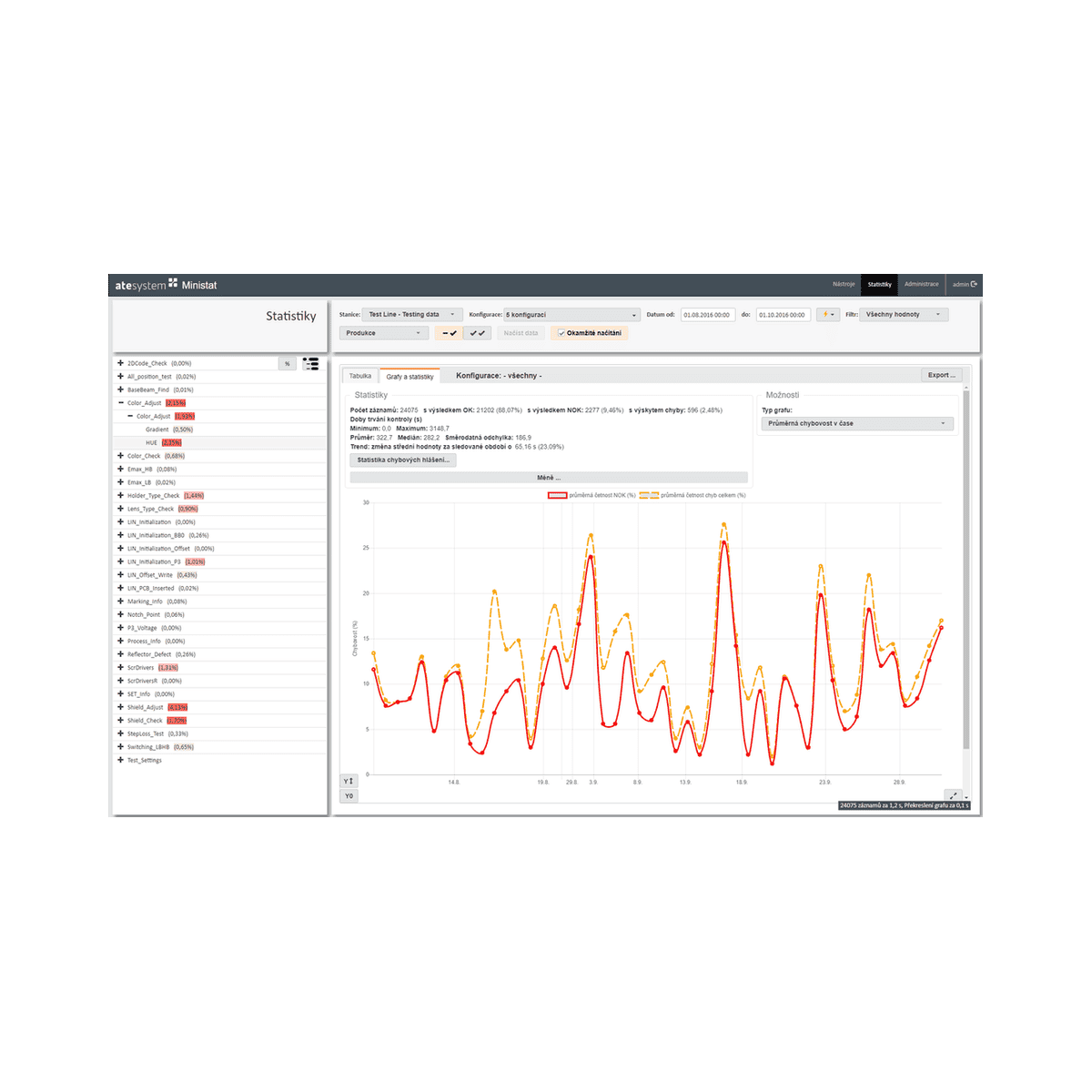

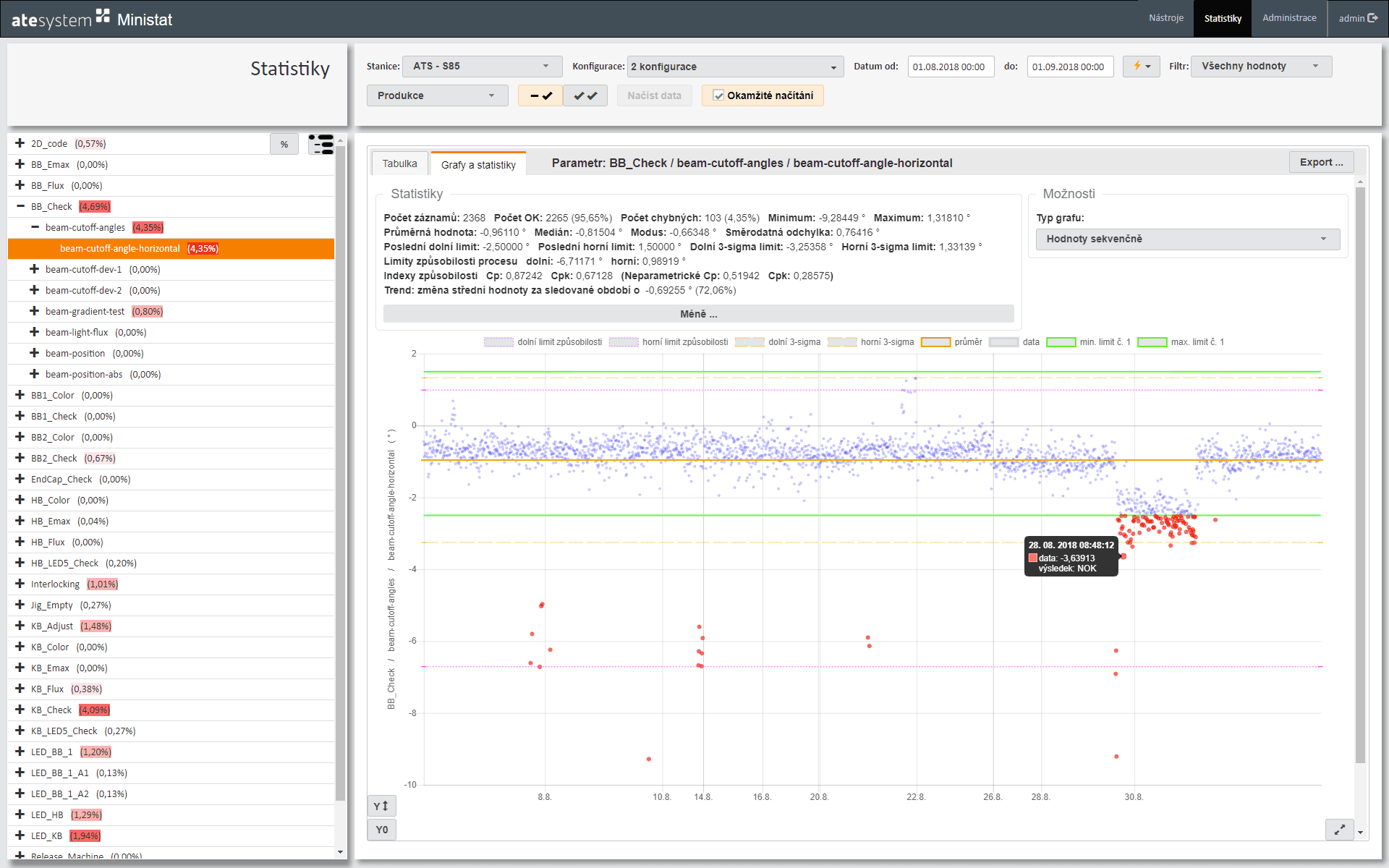

Graphical presentation of data using time graphs, trends, histogram, calculations of process capability coefficients, etc.
Web technology – availability in web browsers on different stations within the network.

Product description

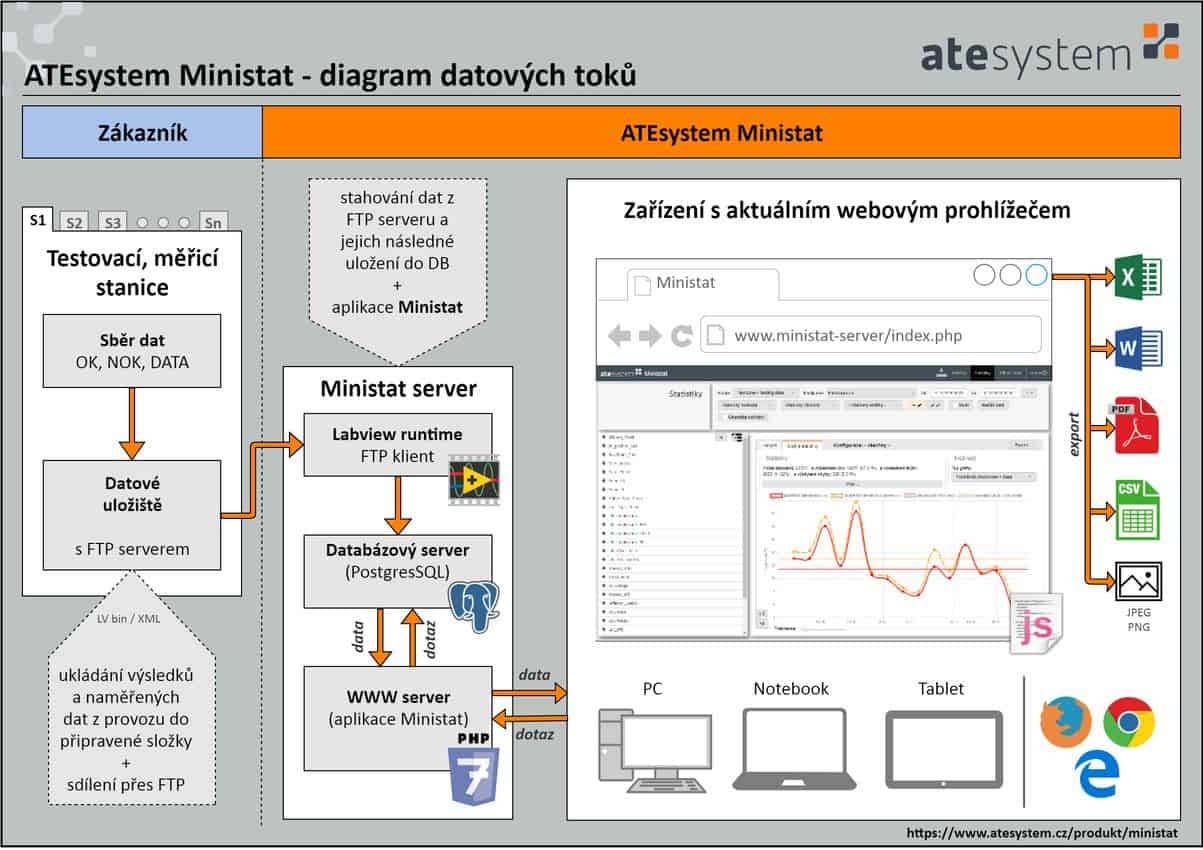

Ministat is a simple yet powerful web-based statistical application accessible from all computers on a given local network. The application runs on a server usually shared with the database where the data is collected. The main advantage of the web interface is that no additional software needs to be installed on individual devices for viewing. Simply connect the PC or tablet to the network, enter the IP address into a standard web browser (Chrome, MS Edge, Mozilla Firefox) and log in.

Thanks to the graphical display of data, the application allows to obtain a quick overview of the development of controlled production parameters at any time, and thus significantly contributes to the early detection of significant changes in production quality or production stability. Graphs and statistics can be exported to user-defined print reports (e.g. with automatic addition of a company page header), thus effectively creating documents directly usable in planning, analyses, audits, etc. The data can also be very quickly browsed and searched at the level of individual manufactured units, which makes the application also applicable, for example, when dealing with product-specific complaints.

Product variants

NAME	ORDER NUMBER
Ministat - server: data collection license for server solution	60742001
Ministat - station: data collection license for one production station	60742002
Ministat - RACK: Data collection license for server solution + HW required for deployment	60742003

You can also find other variants and extensions of Ministat in our e-shop.

Product parameters

Name	Description
Technologies used	PostgreSQL, PHP, JavaScript, LabVIEW (data collection into database).
Number of collected and displayed stations	According to the license and server performance.
Database size	Limited only by the capacity of the server/station hard drives. For the server version - unlimited scalability, i.e. you can simply increase the storage capacity of the system by adding a hard disk at any time.
Number of clients to view data	Unlimited, depends on the performance of the server.
Client performance requirement	Any office PC. Client processor performance and network speed affect the speed of data downloads and graph rendering in a web browser.
