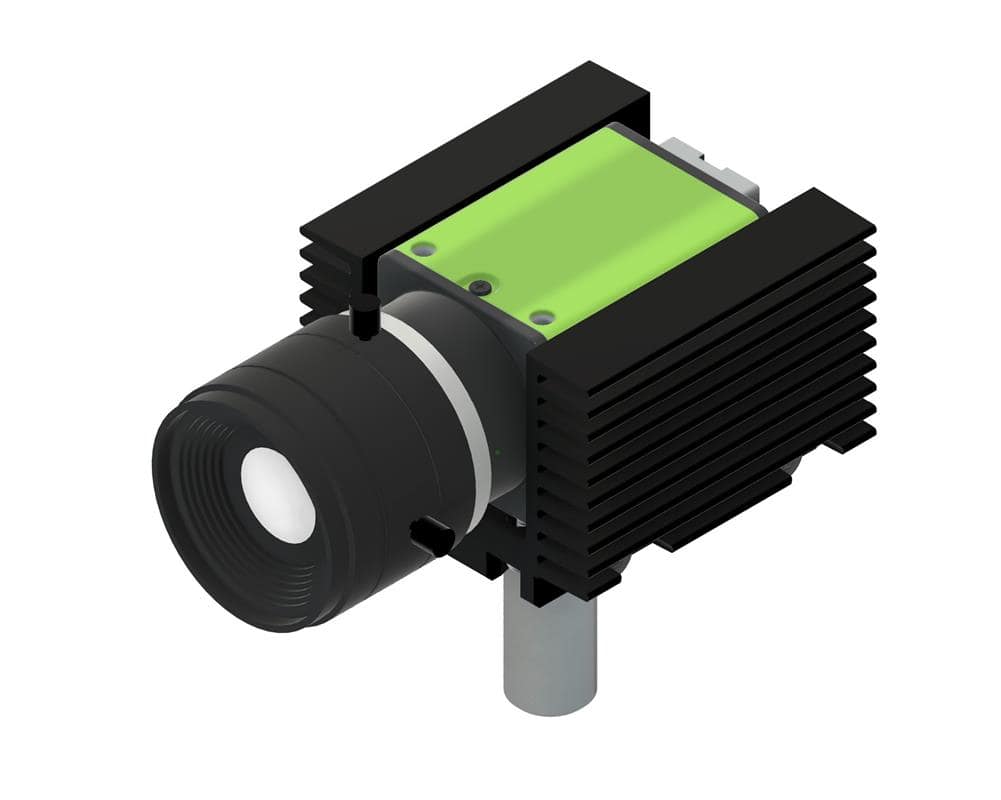

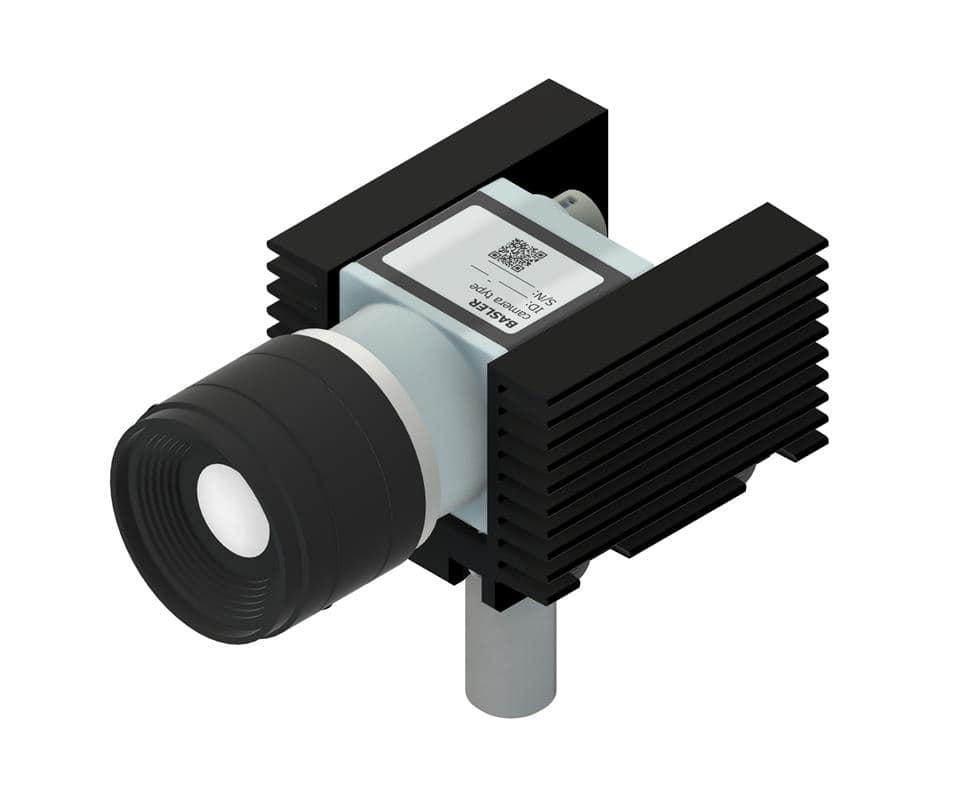

Universal holder with heat sink for sugarcube cameras
Key Features
- Universal camera holder for 29 x 29 mm sugarcube cameras, tested for Basler ace, ace 2, FLIR, IDSAVT-MAKRO, Opto-Engineering – COE, LUCID, JAI GO and GO-X.
- Suitable for Gigabit Ethernet and USB 3.0 variants.
- Reduces the working temperature by up to 10 °C.
- Reduces camera thermal noise to improve image quality.
- Extends the life of the camera and its trouble-free operation.
- In confined spaces, only the bracket without side heat sinks can be used.
- Equipped with ¼” thread for tripod.
Product description

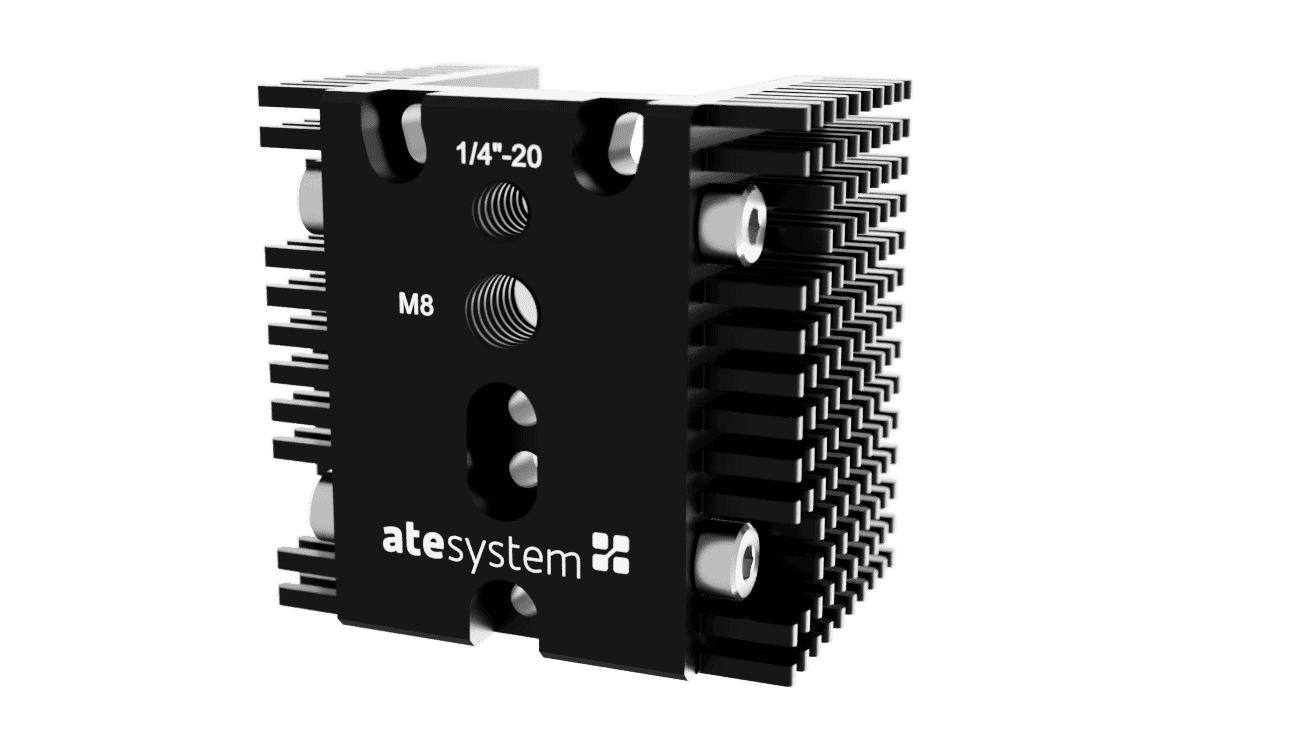

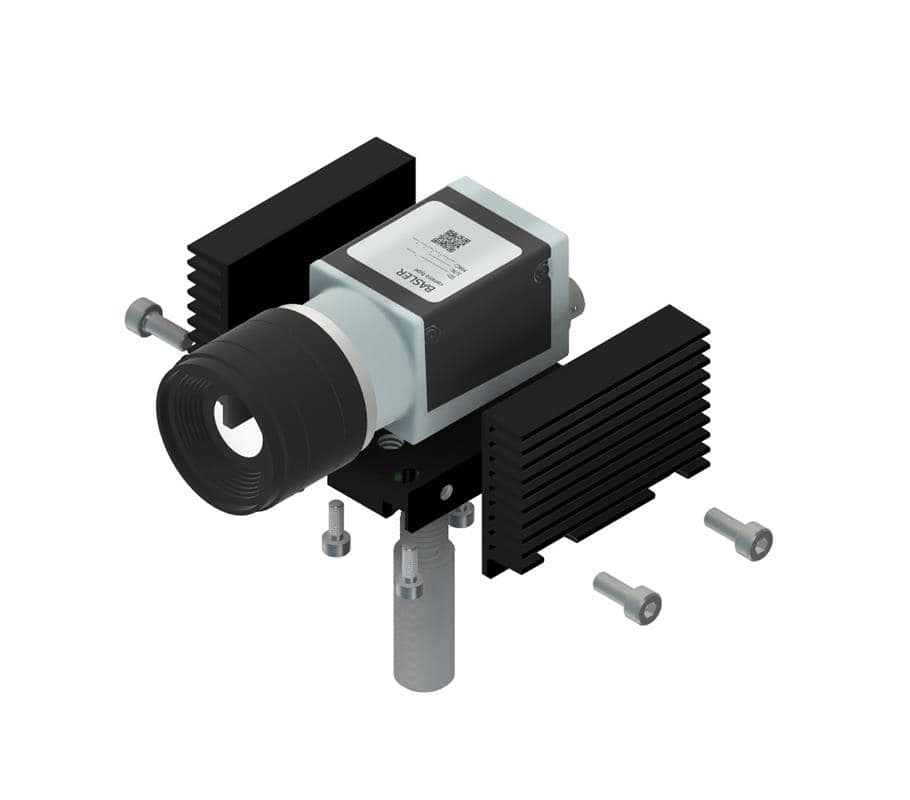

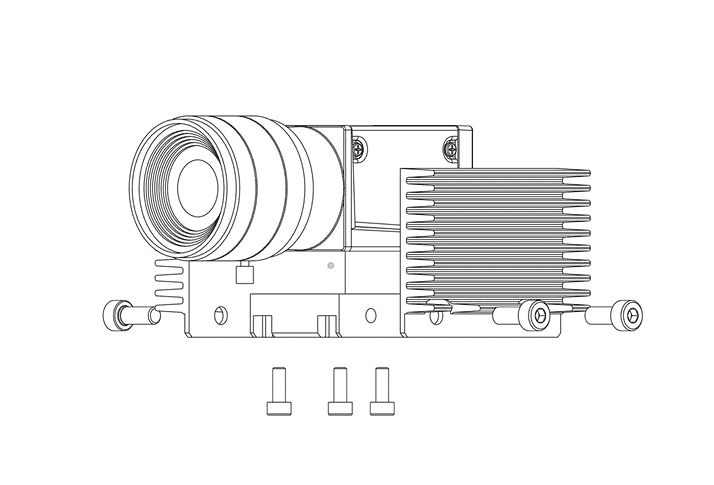

The universal camera holder with heat sink consists of four aluminium parts that are screwed together. The sides of the heat sink have milled ribbing to maximize cooling area. Thanks to the oversizing, the heat sink is also suitable for cameras with POE converters, which are characterized by higher power dissipation. A black matte anodized finish is used as a surface treatment for all parts, which increases scratch resistance while improving cooling efficiency by radiating heat into the surrounding area.

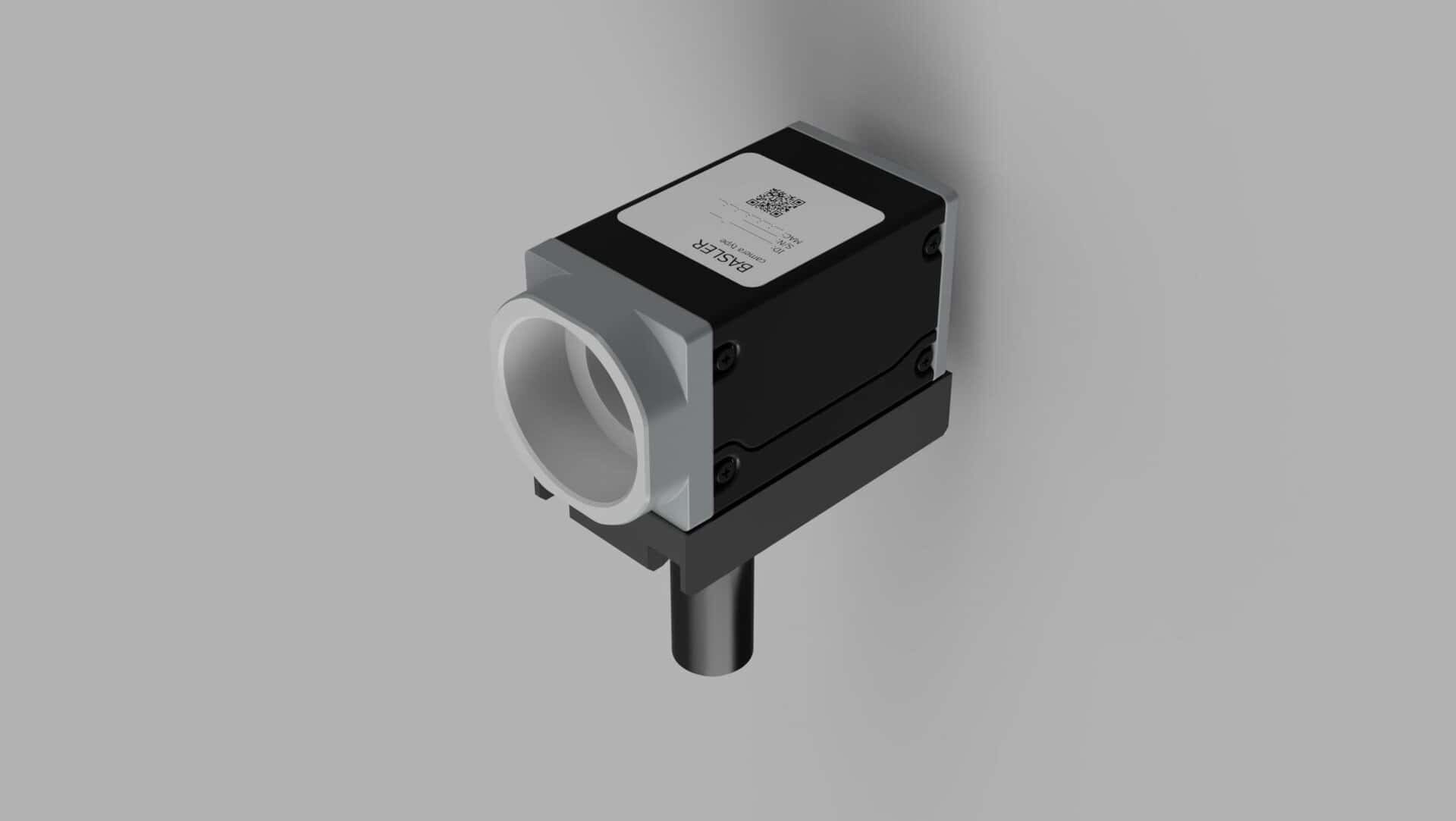

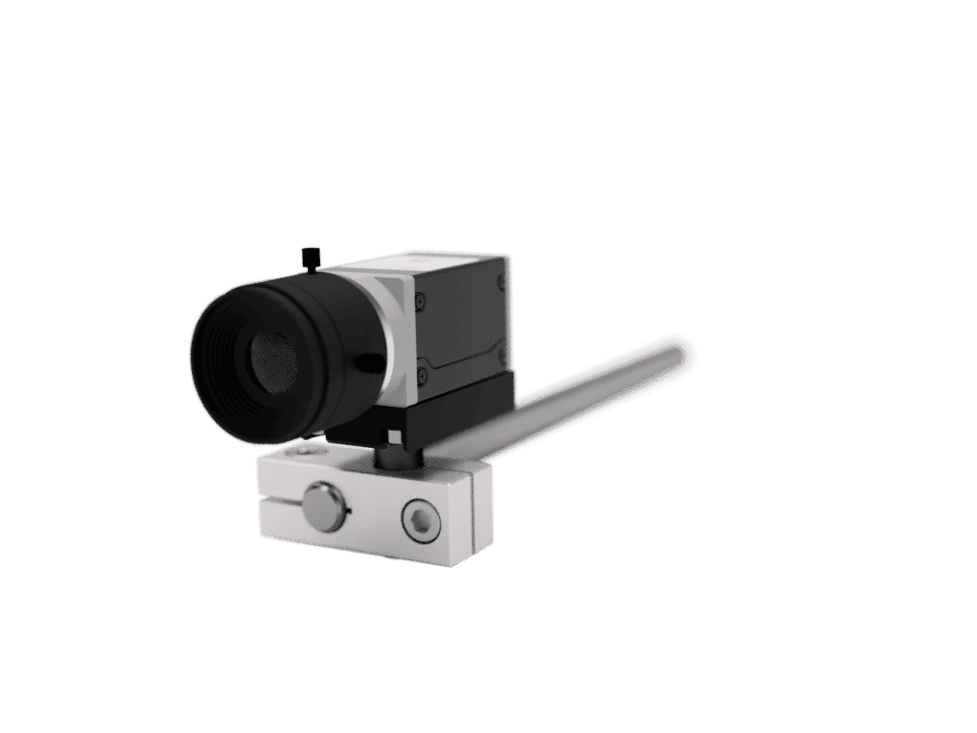

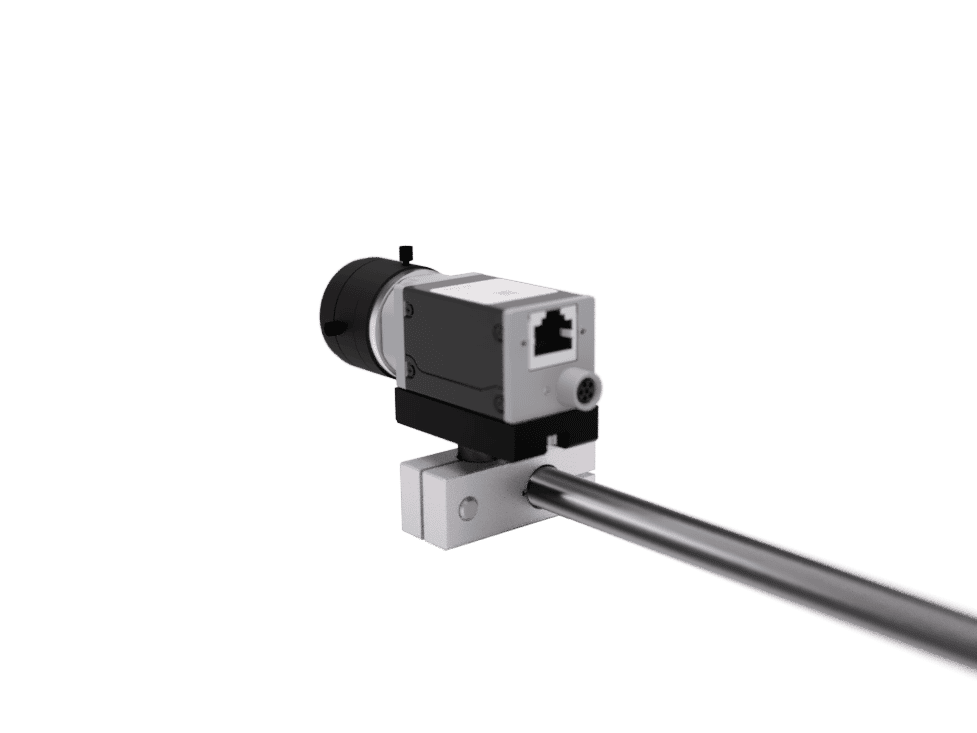

The camera holder with heat sink is designed to be easily used with Balluff’s standard mounting system. A 12 mm diameter rod is used for this purpose and can be purchased as an optional accessory. It also features a ¼” “tripod” thread for easy mounting.
You can also find the holder with heat sink and accessories (rod) in our e-shop.
Product and accessories
| NAME | ORDER NUMBER |
|---|---|

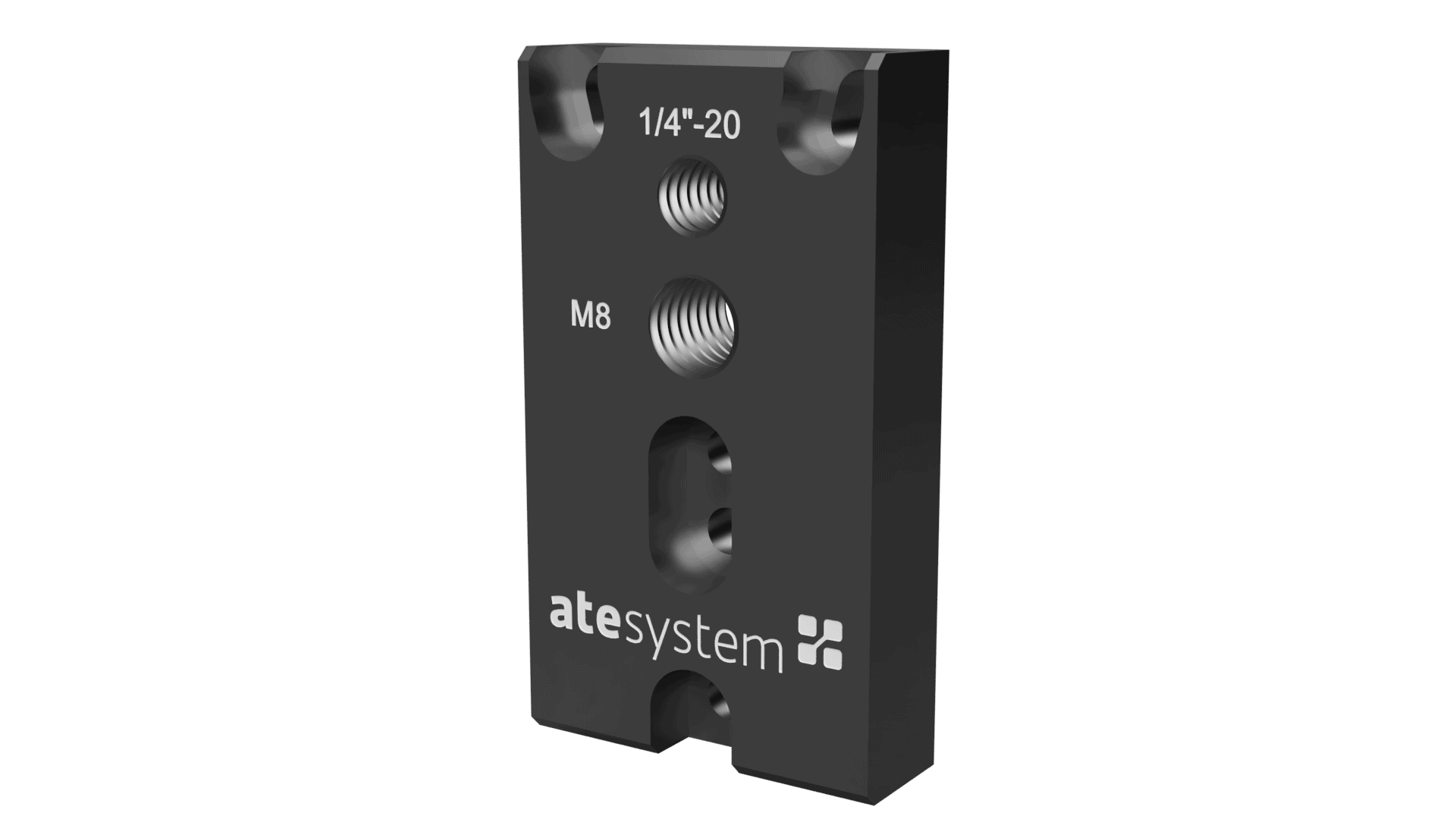

| Universal camera holder for sugarcube cameras | 62025001 |
| Heat sink for sugarcube cameras | 62025003 |

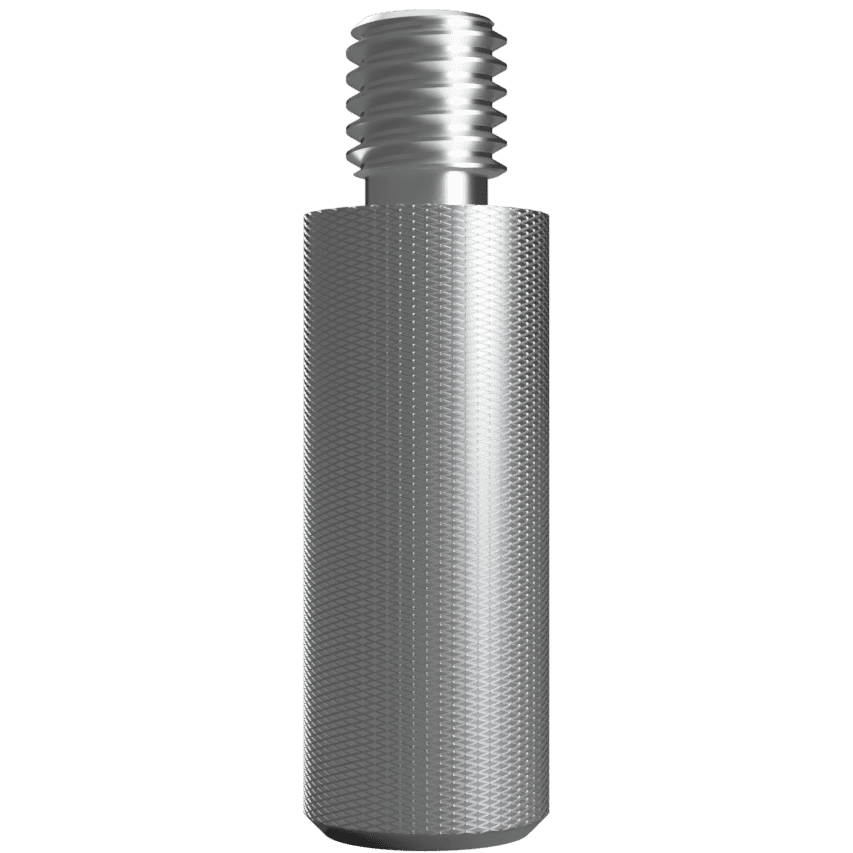

| Rod M8 D12x40 mm | 62025004 |
Parameters
| Name | Value |
|---|---|

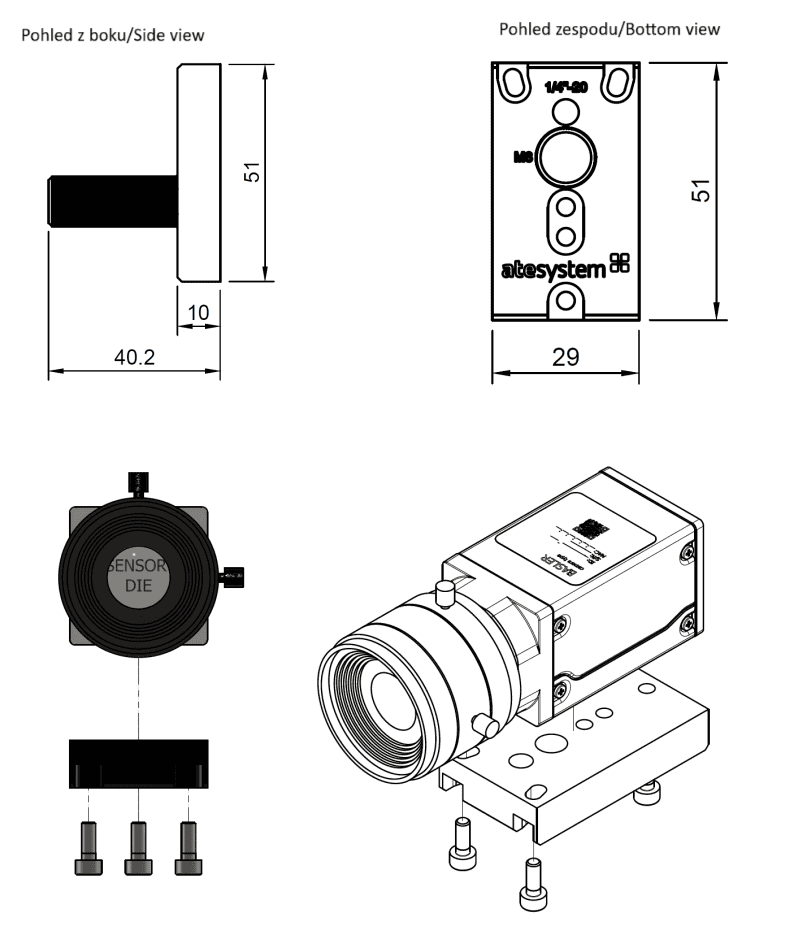

| Dimensions of the holder without rod | 10 x 29 x 51 mm |
| Heat sink dimensions | 53.6 x 39 x 51 mm |
| Length x diameter of the rod | 30 x 12 mm |
| Camera front dimensions | 29 x 29 mm |
| Holder weight | 35 g |
| Types of threads | M8, 1/4" |
Download
| FILE NAME | DESCRIPTION | SIZE | |
|---|---|---|---|
| Catalogue sheet (CZ) | Universal camera holder for sugarcube cameras | 571 KB |
Download
|
| Datasheet (EN) | Universal camera holder for sugarcube cameras | 602 KB |
Download
|
| Catalogue sheet (CZ) | Heat sink for sugarcube cameras | 876 KB |
Download
|
| Datasheet (EN) | Heat sink for sugarcube cameras | 846 KB |
Download
|
| Catalogue sheet (CZ) | Rod | 398 KB |
Download
|
| Datasheet (EN) | Rod | 420 KB |
Download
|
